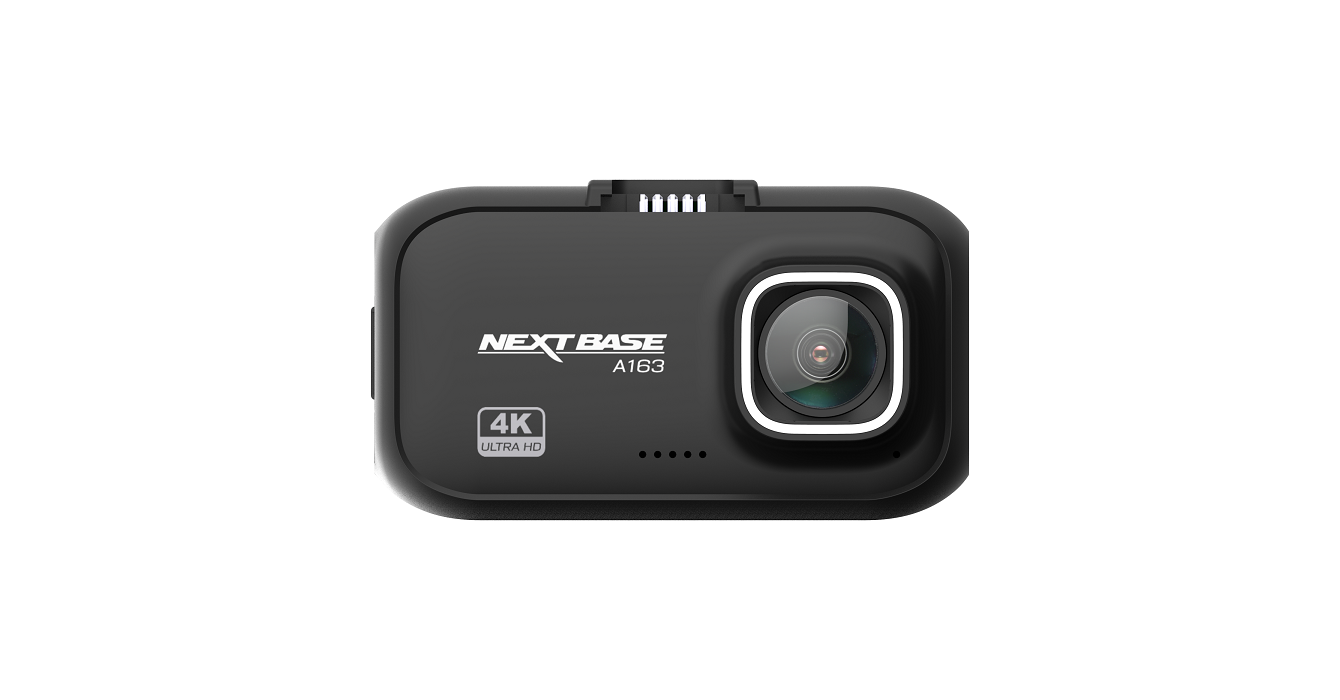

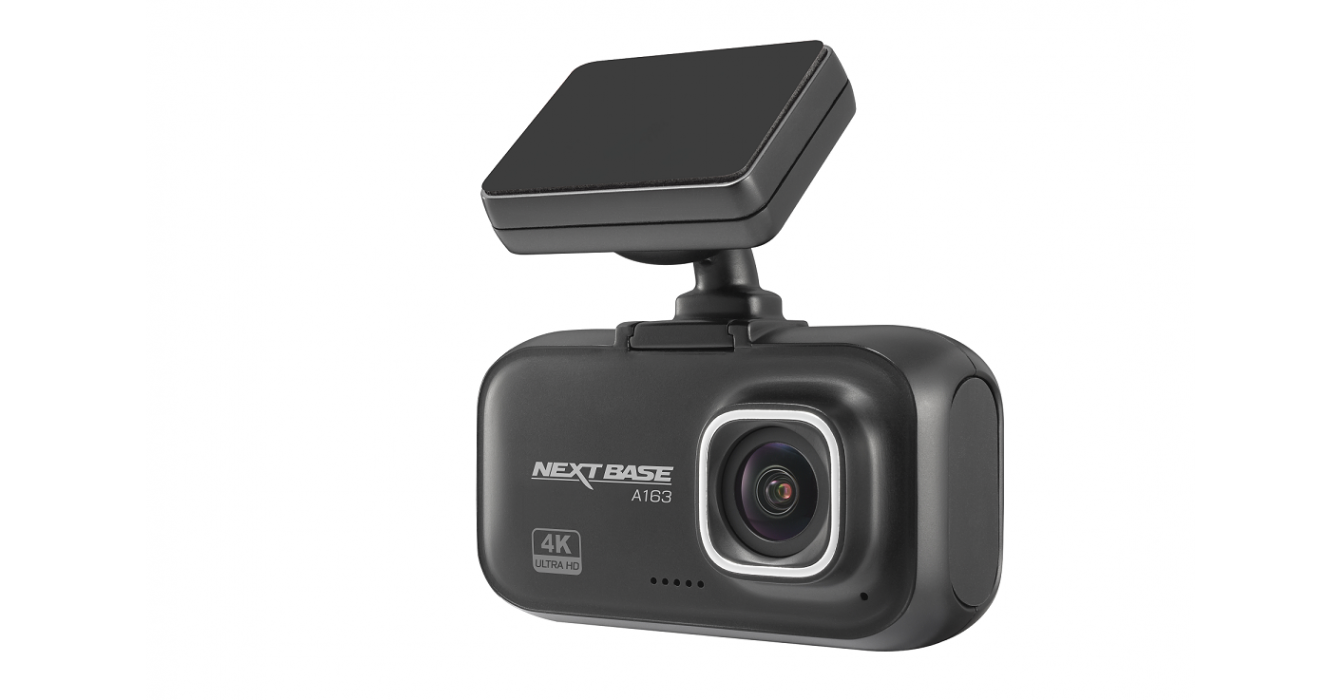

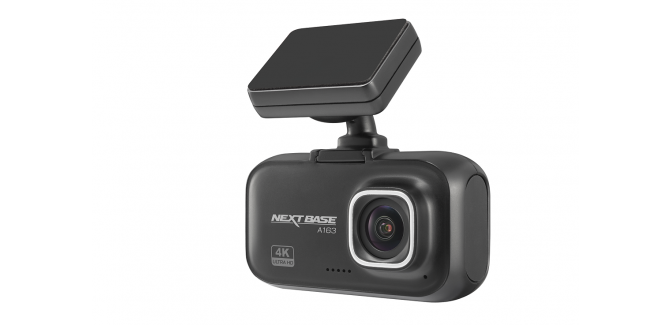

A163 Dash Cam

The flagship model of A16X series.
Using SONY Starvis 415 sensor(8MP resolution) and Novatek 96670.
Provide you up to 4K recording quality(one channel) or 2K+1K recording quality(2 channels, you can connect with either A16C or A16R).
It's recommended for those who would like to have the best recording quality choice.

Features

*

  • True 4K recording quality
  • SONY 415 Starvis sensor(8MP), great day and night vision
  • G-sensor file lock protection, and emergency file lock button
  • Intelligent Parking mode(need to use hardwire kits)
  • GPS module to keep your movement record(use our player)

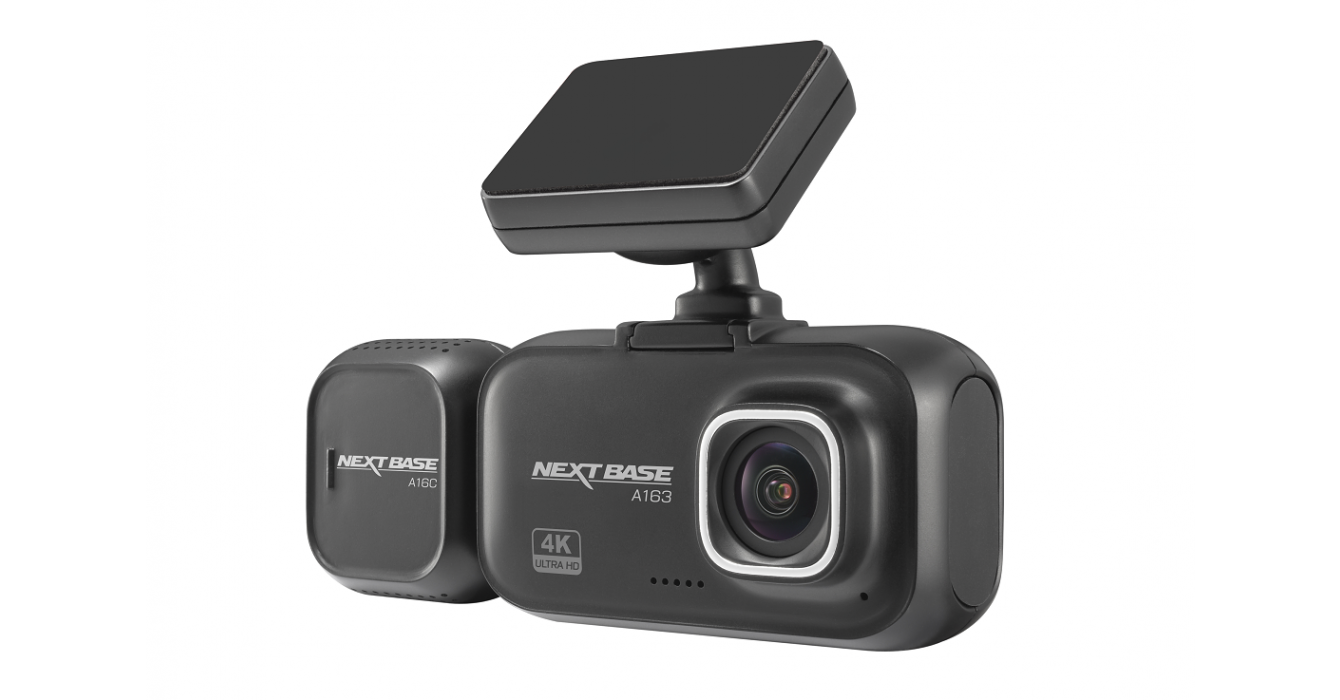

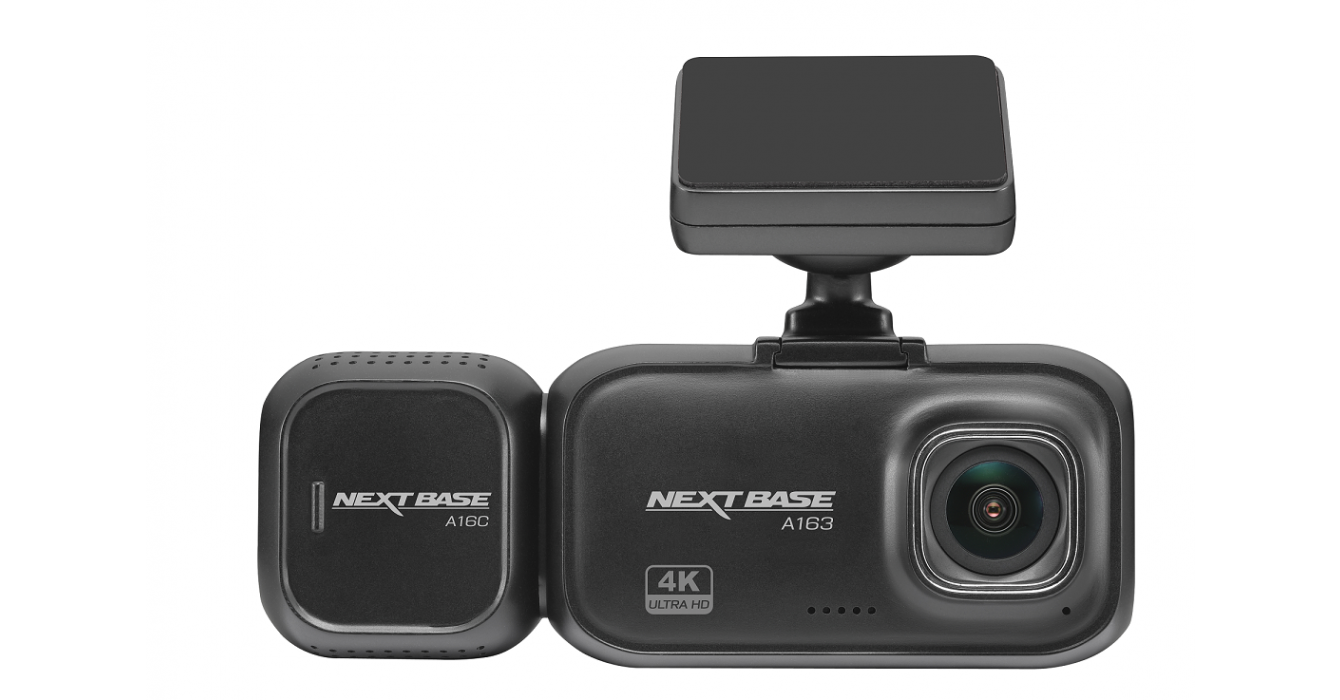

  • Connect with A16C/A16R for 2 channels recording

*
  • SONY Starvis 415 sensor(8MP)
  • Up to 4K resolution
  • Novatek 96670

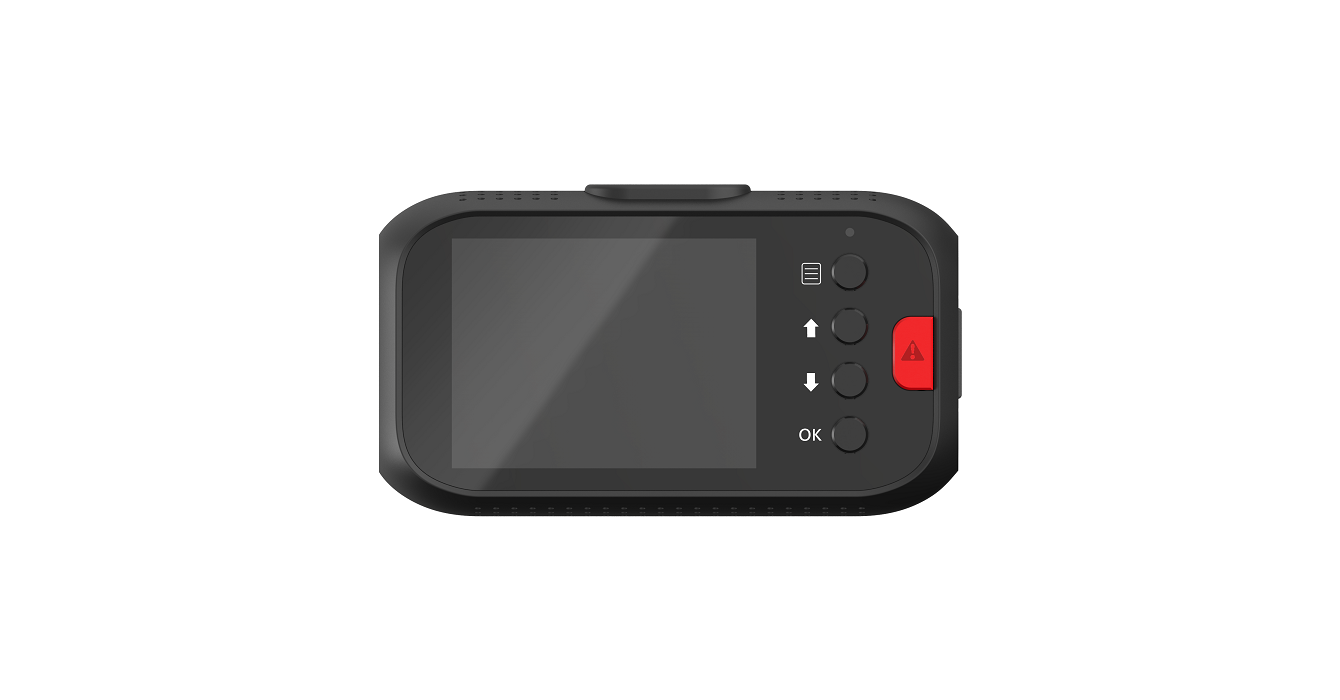

  • 2.0" screen
  • 140 degree view angle
  • F/1.6 aperture
  • Lens: 7G
  • G sensor/ File protection
  • Intelligent Parking Mode(Motion Detection)
  • Available for 2nd camera(A16C/A16R)
  • Video format: H.264
  • MicroSD cards up to 256GB
  • Microphone, Speaker
  • Super capacitor
  • Car charger with USB port
  • 75mm x 40mm x 25mm (without GPS bracket)
  • 75mm x 40mm x 75mm (with GPS bracket)
  • 60 g
File Name
Download
A163 TW Version FW, 優化GPS訊號處理、影像畫質 、螢幕影像延遲、錄音音量(2020.11.23)
A163 TW Version FW, FPS修正版、優化開機啟動程序 、取消關機logo(2020.12.29)
A163 TW Version FW, 優化停車監控模式下關機(不更改原始解析度設定)，增加SD卡問題代碼(2021.03.24 New)
A163 TW Version FW, 優化GPS訊號顯示資料，可分為GPS+車速；只顯示車速；只顯示GPS；關閉(2021.04.21 New)
FWA163_TW Version FW 包含優化GPS訊號顯示資料，可分為GPS+車速；只顯示車速；只顯示GPS；關閉((2021.05.20 New)
NEXTBASE A16X User Manual English Version 2021/12/20 New!
NEXTBASE A16X User Manual Traditional Chinese Version(繁體中文版，2021.12.15 New!)
