Next Base

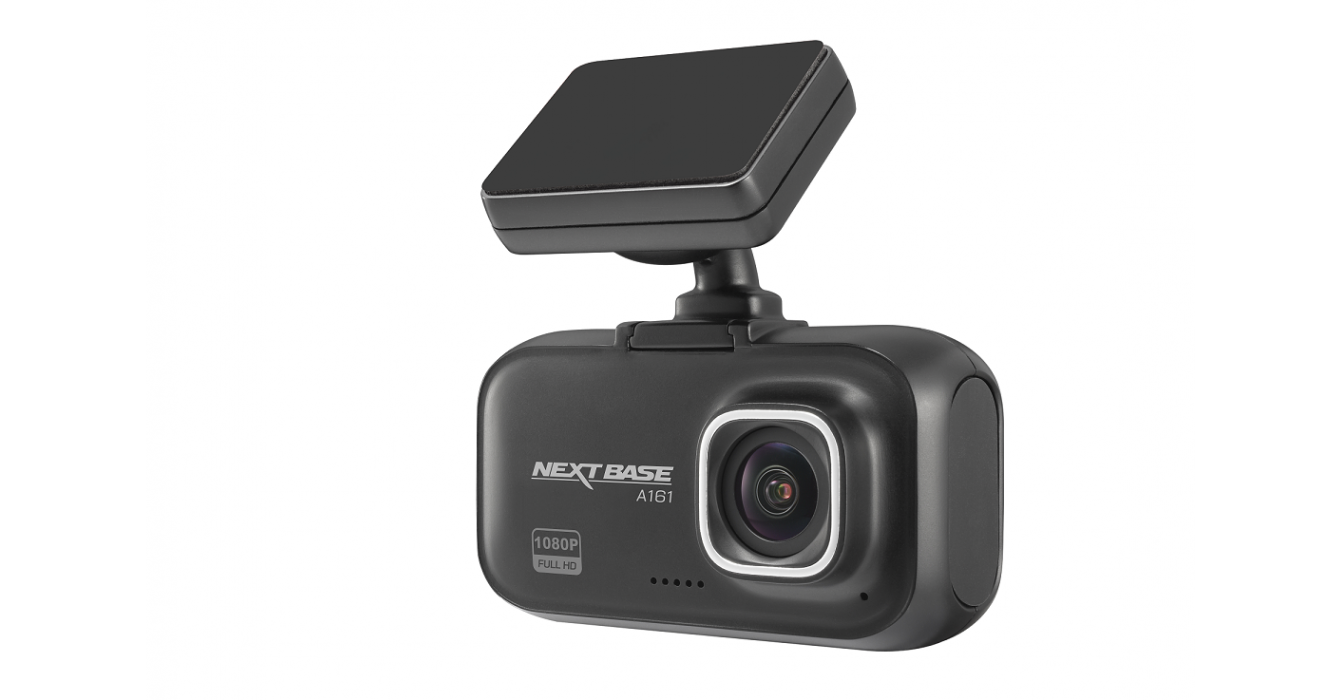

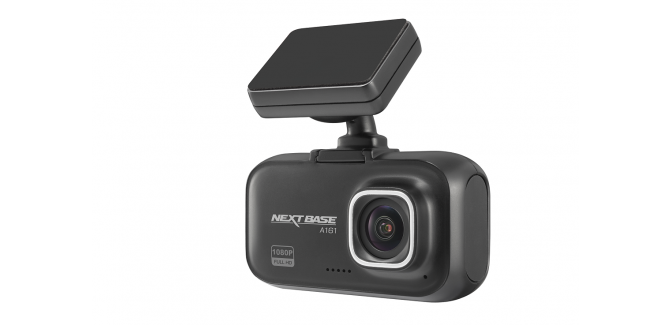

A161(W) Dash Cam

The advanced model of A16X series.
Using SONY Starvis 307 sensor(2MP resolution) and Novatek 96675.
Provide you up to 1080P@60fps recording quality(one channel) or both 1080P@30fps recording quality(2 channels, you can connect with either A16C or A16R).
It's recommended for those who would like to have the best Cost/Performance 2 channels dash cam choice.
(W) Model name with "W" means with Wifi Option, can use My_NB APP to connect/download videos.



  • Up to 1080P@60fps recording quality, with WDR
  • SONY 307 Starvis sensor(2MP), great day and night vision
  • G-sensor file lock protection, and emergency file lock button
  • Intelligent Parking mode(need to use hardwire kits)
  • GPS module to keep your movement record(use our player)
  • Connect with A16C/A16R for 2 channels recording
  • Wifi & My_NB APP to connect dashcam to view/download videos(for A161W model only)

  • SONY Starvis 307 sensor(2MP)
  • Up to 1080P@60fps resolution
  • Novatek 96675
  • 2.0" screen
  • 140 degree view angle
  • F/1.6 aperture
  • Lens: 6G
  • G sensor/ File protection
  • Intelligent Parking Mode(Motion Detection)
  • Available for 2nd camera(A16C/A16R)
  • Wifi & APP (for A161W model only)
  • Video format: H.264
  • MicroSD cards up to 256GB
  • Microphone, Speaker
  • Super capacitor
  • Car charger with USB port
  • 75mm x 40mm x 25mm (without GPS bracket)
  • 75mm x 40mm x 75mm (with GPS bracket)
  • 60 g
File Name
20201113 A161 TW version FW,優化錄影的錄音聲音小的問題
20210421 A161 TW version FW,優化GPS訊號顯示,可分為GPS+車速;只顯示車速;只顯示GPS;關閉(2021.04.21 New)
NEXTBASE A16X User Manual English Version 2021/12/20 New!
NEXTBASE A16X User Manual Traditional Chinese Version(繁體中文版,2021.12.15 New!)
My_NB APP user manual(Android version) For Wifi model(A161W) only!
My_NB APP user manual(iOS version) For Wifi model(A161W) only!
NEXTBASE A161W _ A16R User Manual(Vietnam version)
