Next Base

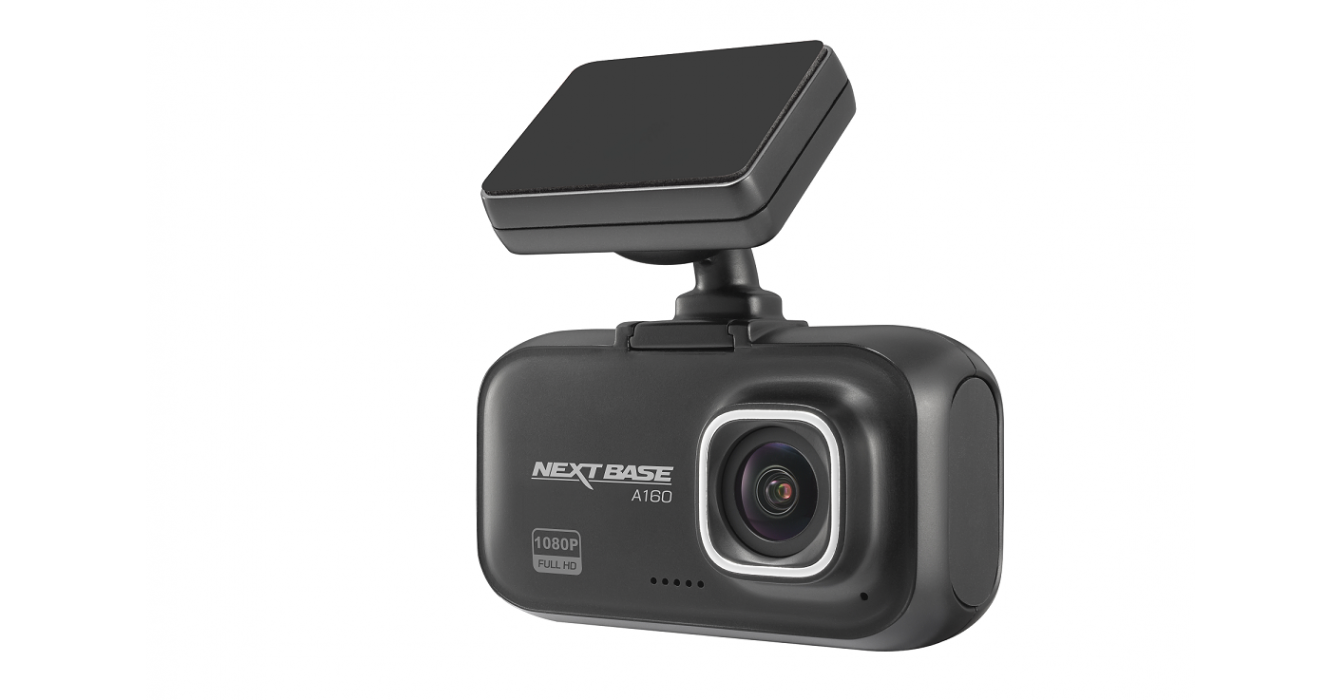

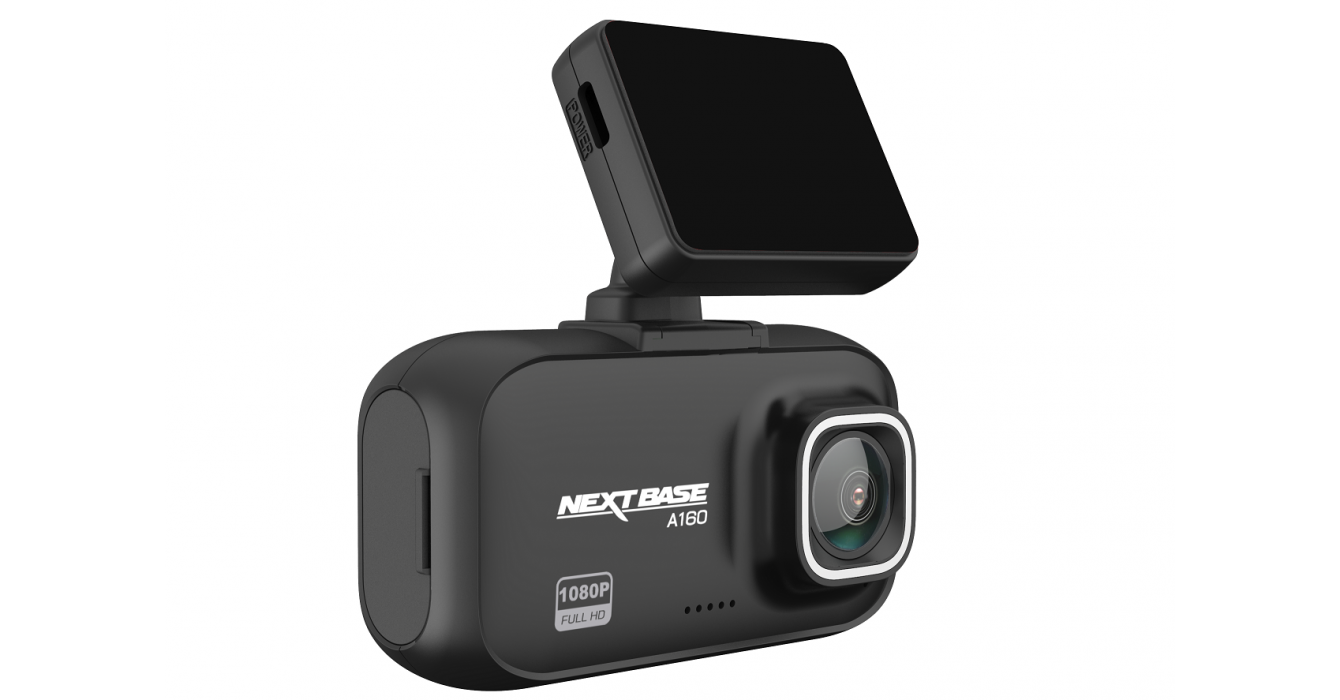

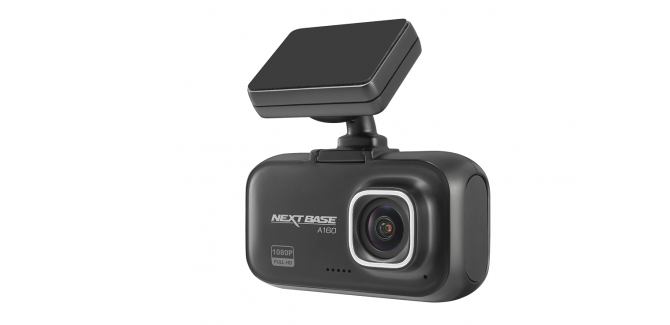

A160 Dash Cam

The standard model of A16X series.
Using SONY Starvis 307 sensor(2M resolution) and Novatek 96672.
Provide you up to 1080P@30fps recording quality(one channel only).
It's recommended for those who would like to have the best Cost/Performance one channel recording choice.



  • 1080P@30fps recording quality
  • SONY 307 Starvis sensor(2MP), great day and night vision
  • G-sensor file lock protection, and emergency file lock button
  • Intelligent Parking mode(need to use hardwire kit)

  • SONY Starvis 307 sensor(2MP)
  • Up to 1080P@30fps resolution
  • Novatek 96672
  • 2.0" screen
  • 140 degree view angle
  • F/1.55 aperture
  • Lens: 2G4P
  • G sensor/ File protection
  • Intelligent Parking Mode(Motion Detection)
  • Video format: H.264
  • MicroSD cards up to 256GB
  • Microphone, Speaker
  • Super capacitor
  • Car charger with USB port
  • 75mm x 40mm x 25mm (without bracket)
  • 75mm x 40mm x 75mm (with bracket)
  • 60 g
File Name
NEXTBASE A16X User Manual English Version 2021/12/20 New!
NEXTBASE A16X User Manual Traditional Chinese Version(繁體中文版,2021.12.15 New!)
NEXTBASE A16X Use manual(Vietnam version)
